RHS

Product Overview

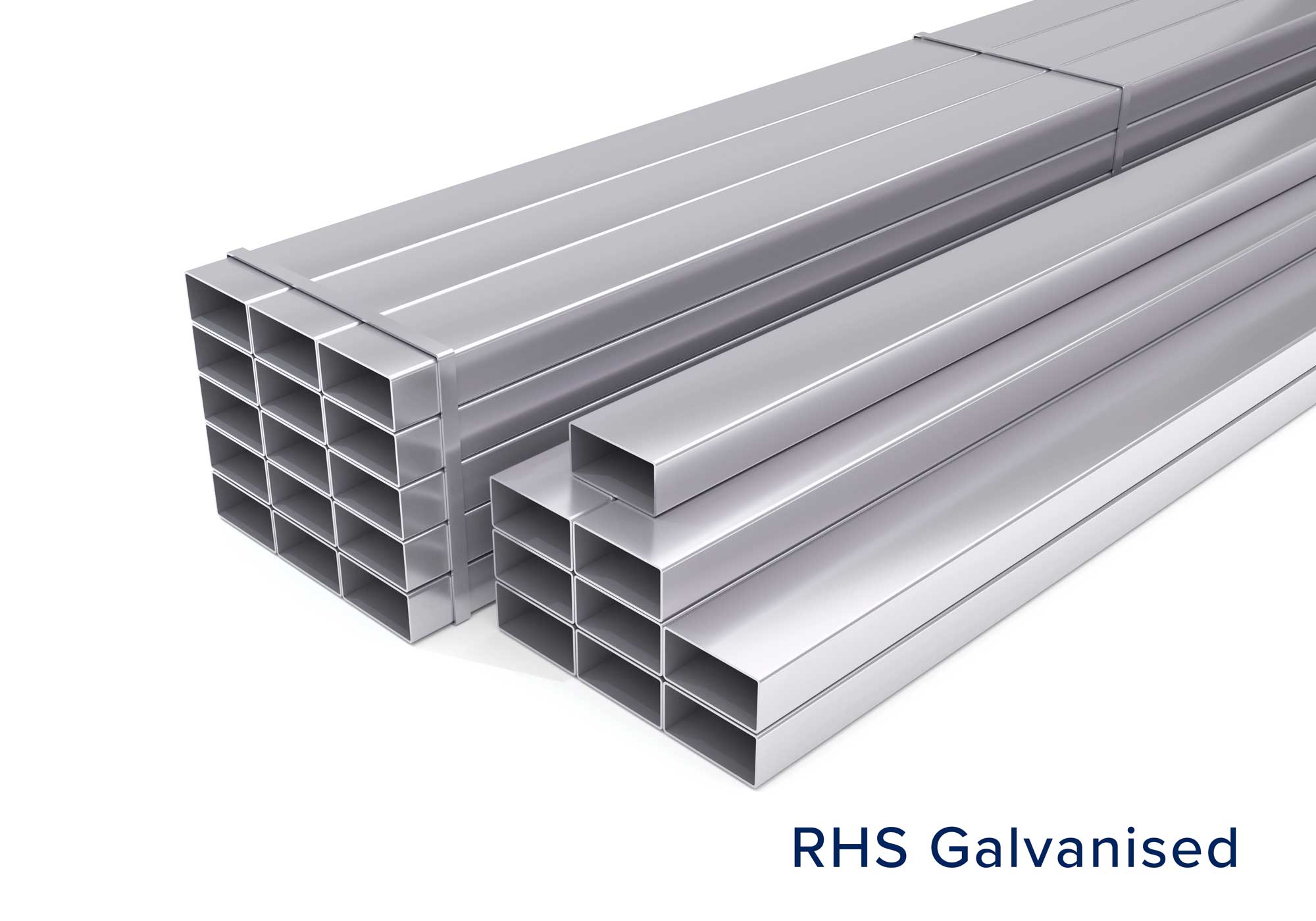

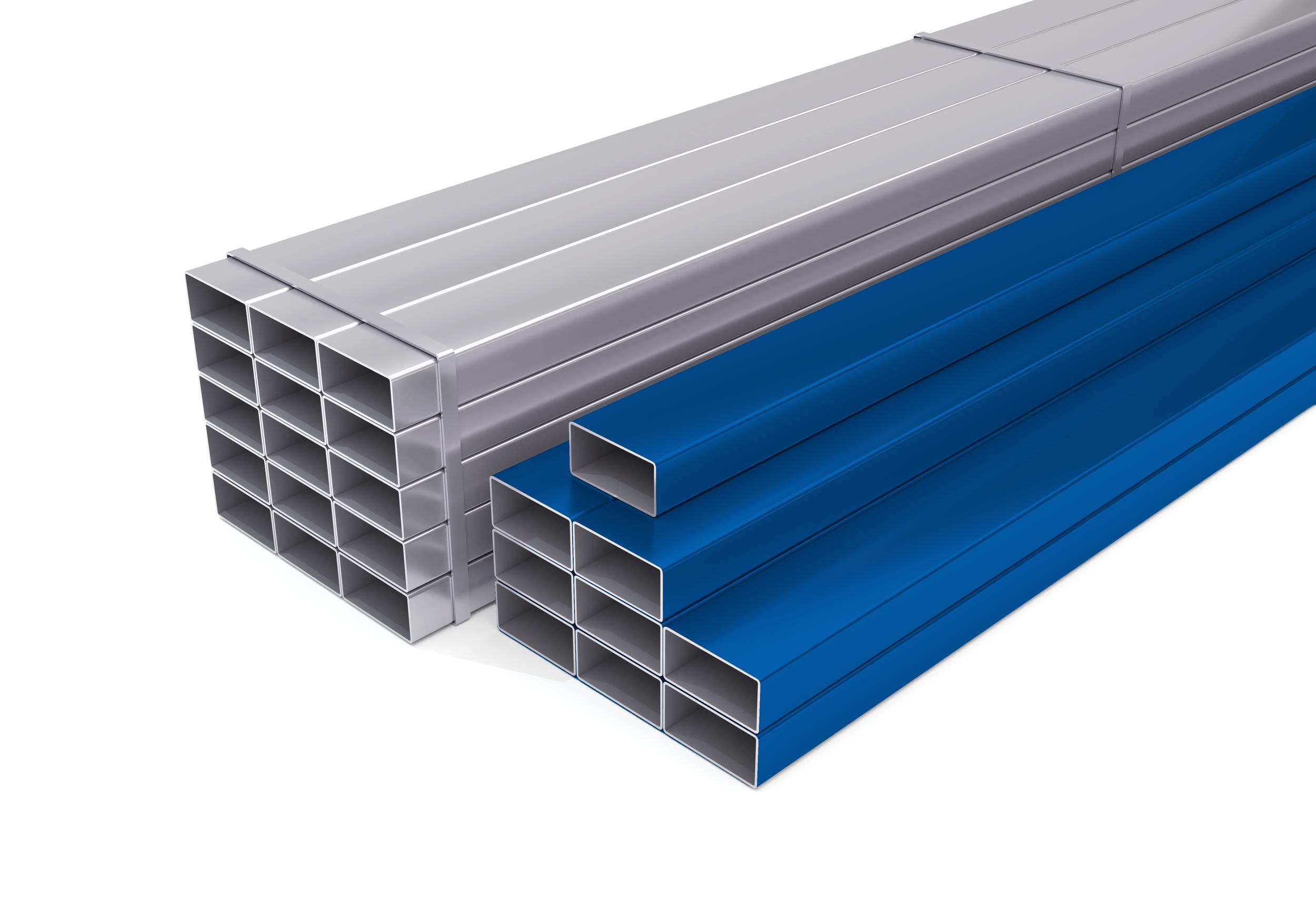

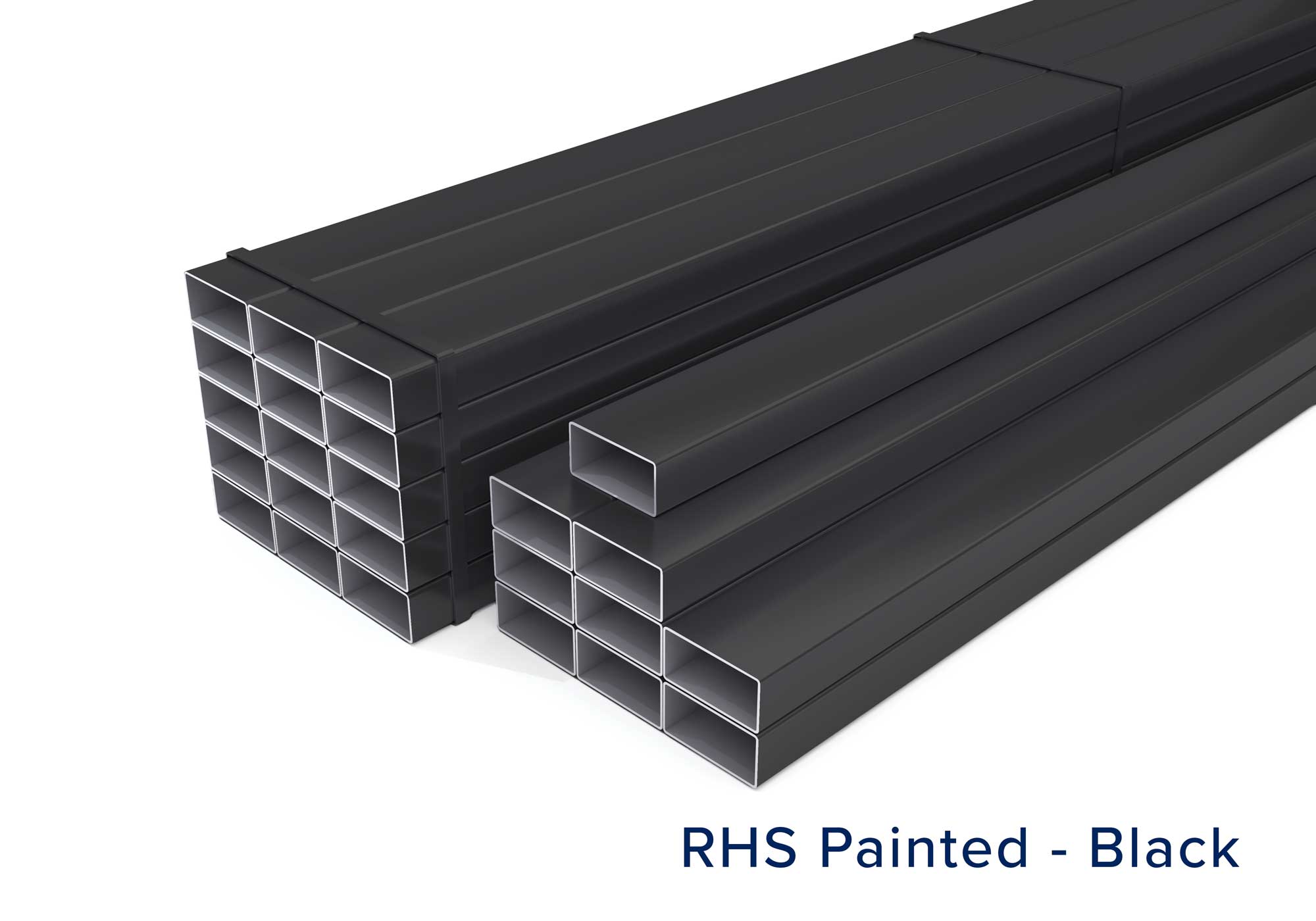

Rectangular Hollow Sections (RHS)

Manufactured from mild steel and compliant with AS/NZS 1163 standards, our steel RHS range delivers strength, precision and consistent performance.

Ideal for structural, fabrication, framing and general engineering applications, offering uniform strength and clean rectangular profiles.

Steel Grade: C350L0

Note: Non-standard steel RHS sizes and lengths available on request. Minimum order quantities (MOQs) apply.

To view our RHS Accessories click here.

Products List

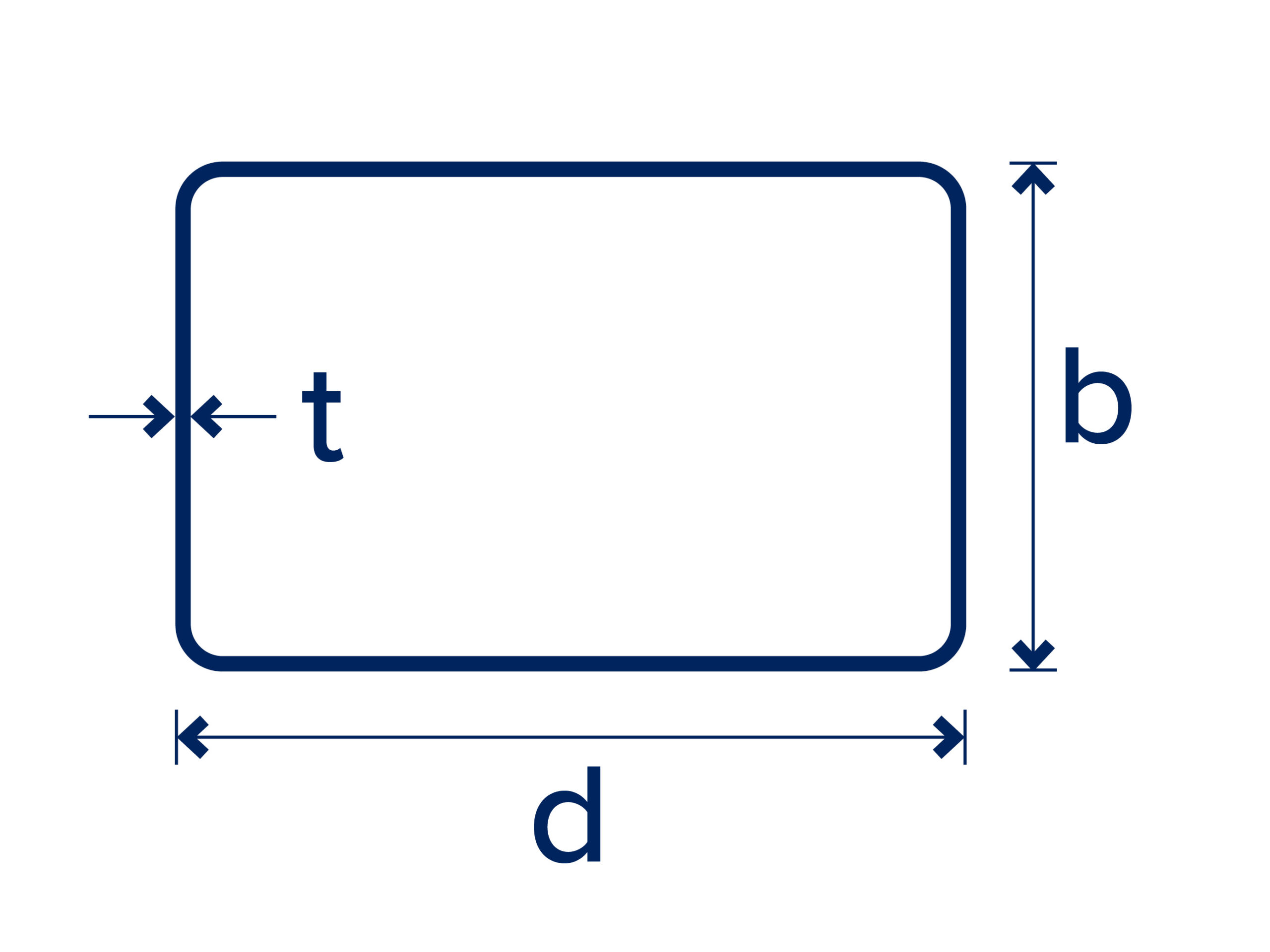

Size dxb (mm)	Wall Thick (mm)	Finished Type		Mass (kg/m)	Lengths/ Pack
Size dxb (mm)	Wall Thick (mm)	Painted	Galv.	Mass (kg/m)	Lengths/ Pack
8000mm Lengths Standard
50 x 25	1.6	✓	✓	1.75	96
	2.0	✓	✓	2.15	96
	2.5	✓	✓	2.62	72
	3.0	✓	✓	3.07	60
65 x 35	1.6	✓	✓	2.38	54
	2.0	✓	✓	2.93	54
	2.5	✓	✓	3.60	54
	3.0	✓	✓	4.25	45
75 x 25	1.6	✓	✓	2.38	65
	2.0	✓	✓	2.93	65
	2.5	✓	✓	3.60	48
75 x 50	1.6	✓	✓	3.01	42
	2.0	✓	✓	3.72	42
	2.5	✓	✓	4.58	42
	3.0	✓	✓	5.42	35
	4.0	✓	✓	6.92	28
	5.0	✓	✓	8.35	24
	6.0	✓	✓	9.67	20
100 x 50	1.6	✓	✓	3.64	32
	2.0	✓	✓	4.50	32
	2.5	✓	✓	5.56	32
	3.0	✓	✓	6.60	32
	3.5	✓	✓	7.53	24
	4.0	✓	✓	8.49	24
	5.0	✓	✓	10.32	18
	6.0	✓	✓	12.03	15
125 x 75	2.5	✓	✓	7.53	20
	3.0	✓	✓	8.96	20
	4.0	✓	✓	11.63	15
	5.0	✓	✓	14.24	15
	6.0	✓	✓	16.74	12
150 x 50	2.0	✓	✓	6.07	21
	2.5	✓	✓	7.53	21
	3.0	✓	✓	8.96	21
	4.0	✓	✓	11.63	15
	5.0	✓	✓	14.24	15
	6.0	✓	✓	16.74	15
150 x 100	3.0	✓	✓	11.31	12
	4.0	✓	✓	14.77	12
	5.0	✓	✓	18.17	12
	6.0	✓	✓	21.45	9
	9.0	✓	-	30.60	6
200 x 100	4.0	✓	-	17.90	8
	5.0	✓	-	22.09	8
	6.0	✓	-	26.16	8
	9.0	✓	-	37.66	6
250 x 150	5.0	✓	-	29.94	6
	6.0	✓	-	35.58	4
	9.0	✓	-	51.79	4
	12.5	✓	-	69.40	2
	16.0	✓	-	85.50	1



DISCLAIMER

Product information, specifications and images are provided as a general guide only and may vary from those shown. Details and availability can change without notice. Please contact Budget Steel to confirm current stock, pricing and product specifications.
