Pipe

Product Overview

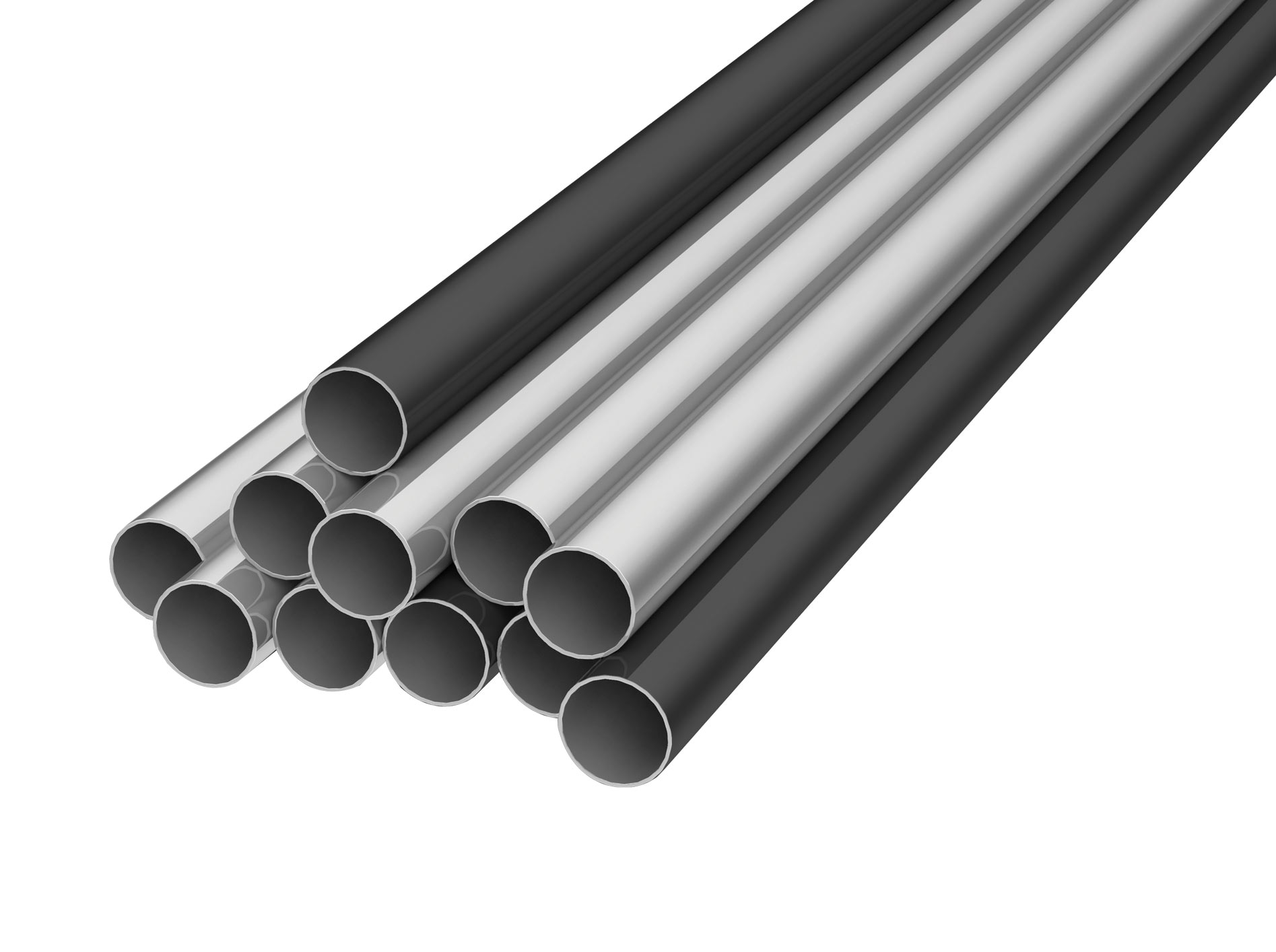

Manufactured from mild steel and compliant with AS/NZS 1163 and AS 1074 standards, our steel pipe range offers strength, precision and long-term performance.

Ideal for structural, fabrication, agricultural and general engineering use.

Steel Grades: C250L0 and/or C350L0 (availability varies by size)

Note: Non-standard steel pipe sizes and lengths available on request. Minimum order quantities (MOQs) apply.

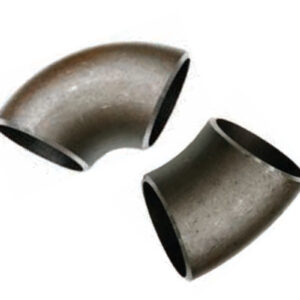

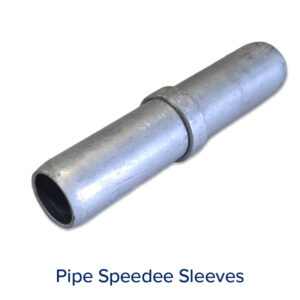

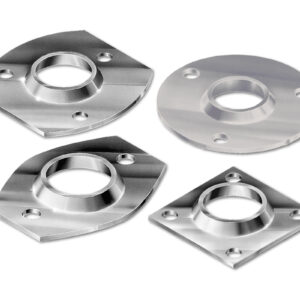

To view our Pipe Accessories click here.

Products List

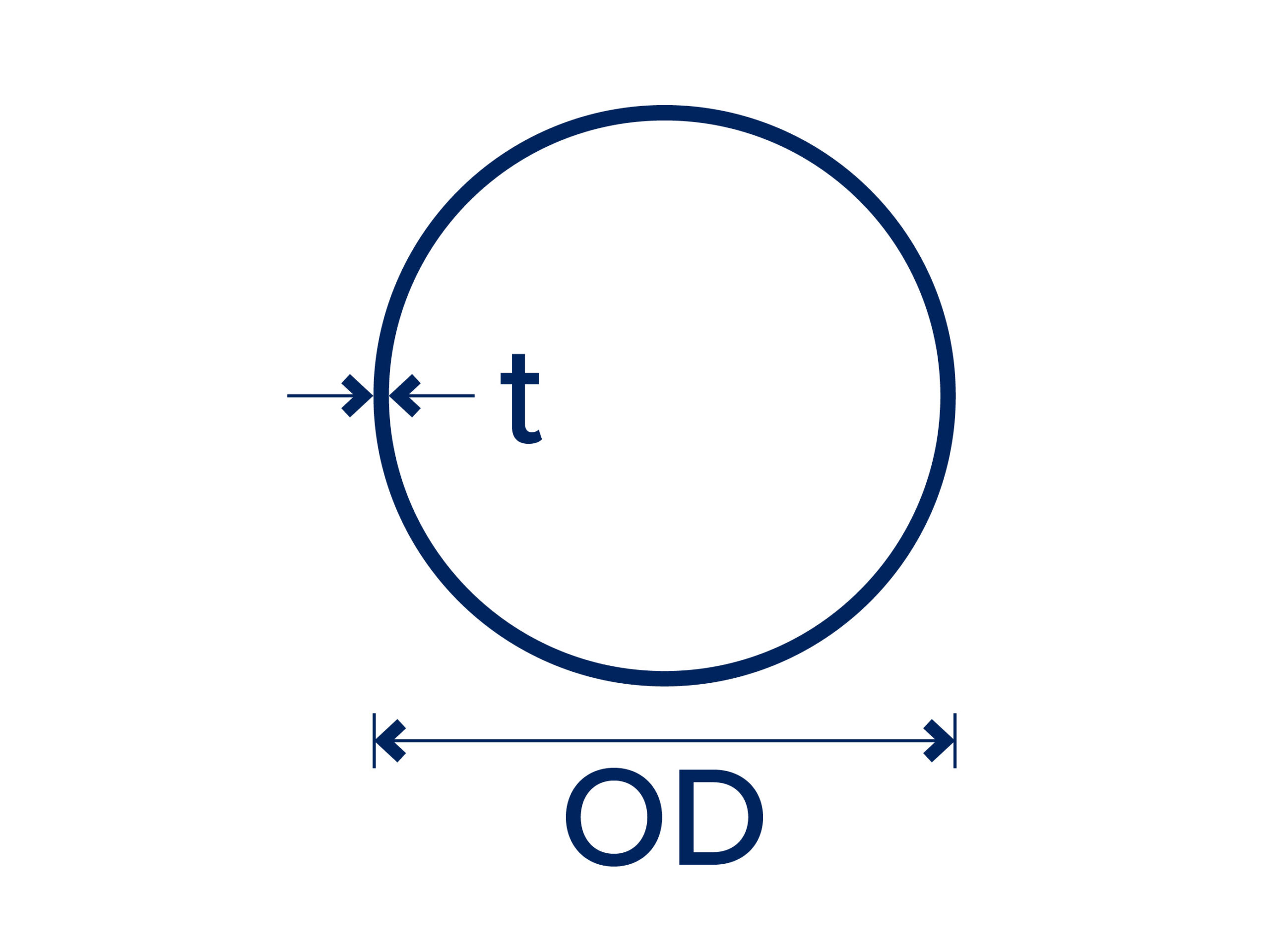

NB (mm)	OD (mm)	Wall Thick (mm)	Wall Class (AS 1074)	Finished Type		Mass (kg/m)	Lengths/ Pack

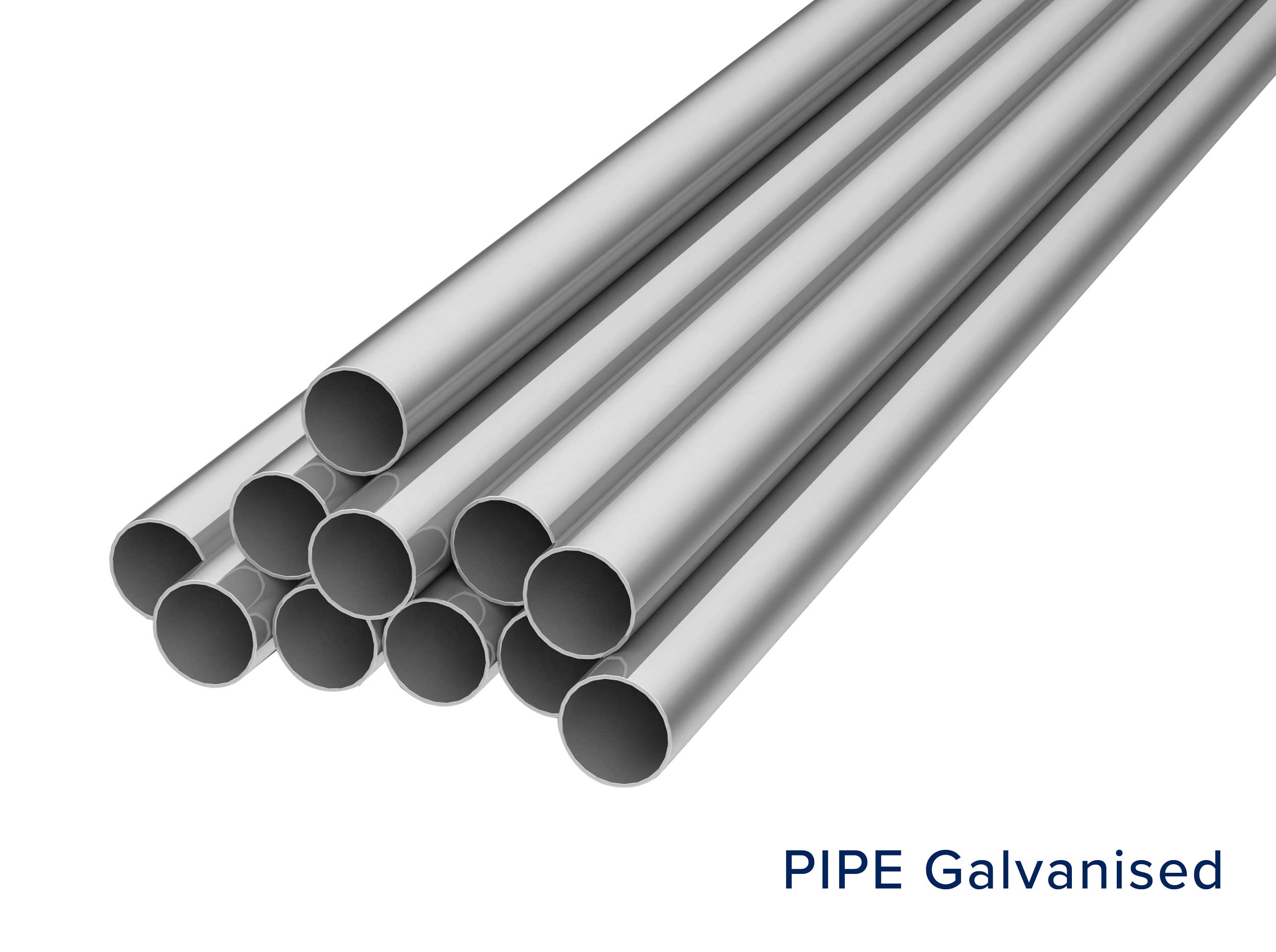

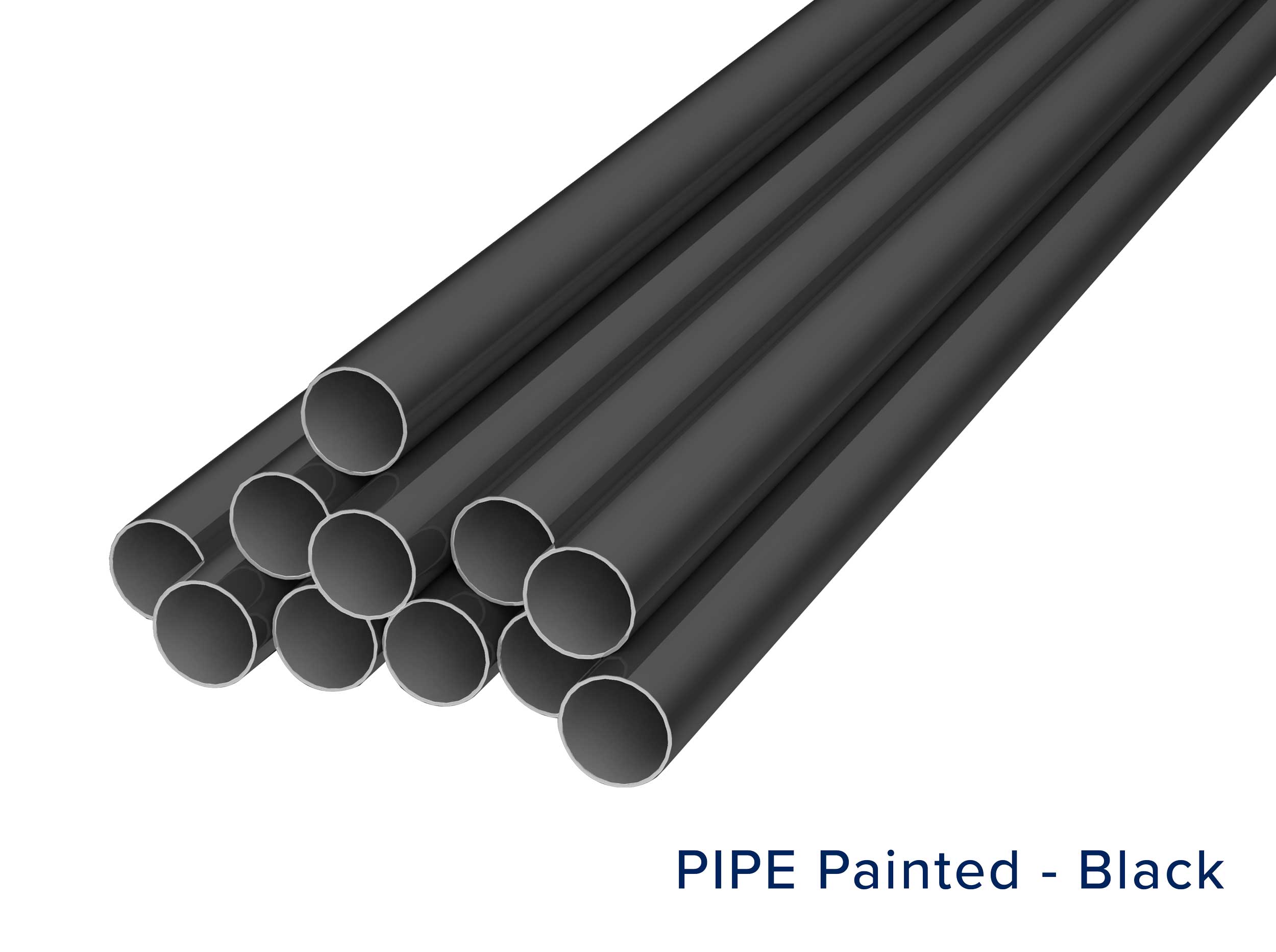

NB (mm)	OD (mm)	Wall Thick (mm)	Wall Class (AS 1074)	Painted	Galv.	Mass (kg/m)	Lengths/ Pack
6500mm Lengths Standard
15	21.3	2.6	Medium	✓	✓	1.24	61
		3.2	Heavy	✓	-	1.48	61
20	26.9	2.0	Xtra Light	✓	✓	1.28	61
		2.3	Light	✓	✓	1.44	61
		2.6	Medium	✓	✓	1.60	61
		3.2	Heavy	✓	✓	1.92	61
25	33.7	2.0	Xtra Light	✓	✓	1.56	91
		2.6	Light	✓	✓	1.99	91
		3.2	Medium	✓	✓	2.41	91
		4.0	Heavy	✓	✓	2.93	91
32	42.4	2.0	Xtra Light	✓	✓	1.99	61
		2.6	Light	✓	✓	2.55	61
		3.2	Medium	✓	✓	3.09	61
		4.0	Heavy	✓	✓	3.79	61
40	48.3	2.3	Xtra Light	✓	✓	2.61	61
		2.9	Light	✓	✓	3.25	61
		3.2	Medium	✓	✓	3.56	61
		4.0	Heavy	✓	✓	4.37	61
50	60.3	2.3	Xtra Light	✓	✓	3.29	37
		2.9	Light	✓	✓	4.11	37
		3.6	Medium	✓	✓	5.03	37
		4.5	Heavy	✓	✓	6.19	37
65	76.1	2.3	Xtra Light	✓	✓	4.19	37
		3.2	Light	✓	✓	5.75	37
		3.6	Medium	✓	✓	6.44	37
		4.5	Heavy	✓	✓	7.95	37
80	88.9	2.6	Xtra Light	-	✓	5.53	19
		3.2	Light	✓	✓	6.76	19
		4.0	Medium	✓	✓	8.38	19
		5.0	Heavy	✓	✓	10.35	19
90	101.6	3.2	Light	✓	-	7.77	19
		4.0	Medium	✓	✓	9.63	19
		5.0	Heavy	✓	-	11.91	19
100	114.3	3.2	Xtra Light	✓	-	8.77	19
		3.6	Light	✓	✓	9.83	19
		4.5	Medium	✓	✓	12.19	19
		5.4	Heavy	✓	-	14.50	19
125	139.7	3.0	Xtra Light	-	✓	10.11	13
		5.0	Medium	-	✓	16.61	13
150	165.1	5.0	Medium	✓	✓	19.74	10



DISCLAIMER

Product information, specifications and images are provided as a general guide only and may vary from those shown. Details and availability can change without notice. Please contact Budget Steel to confirm current stock, pricing and product specifications.
