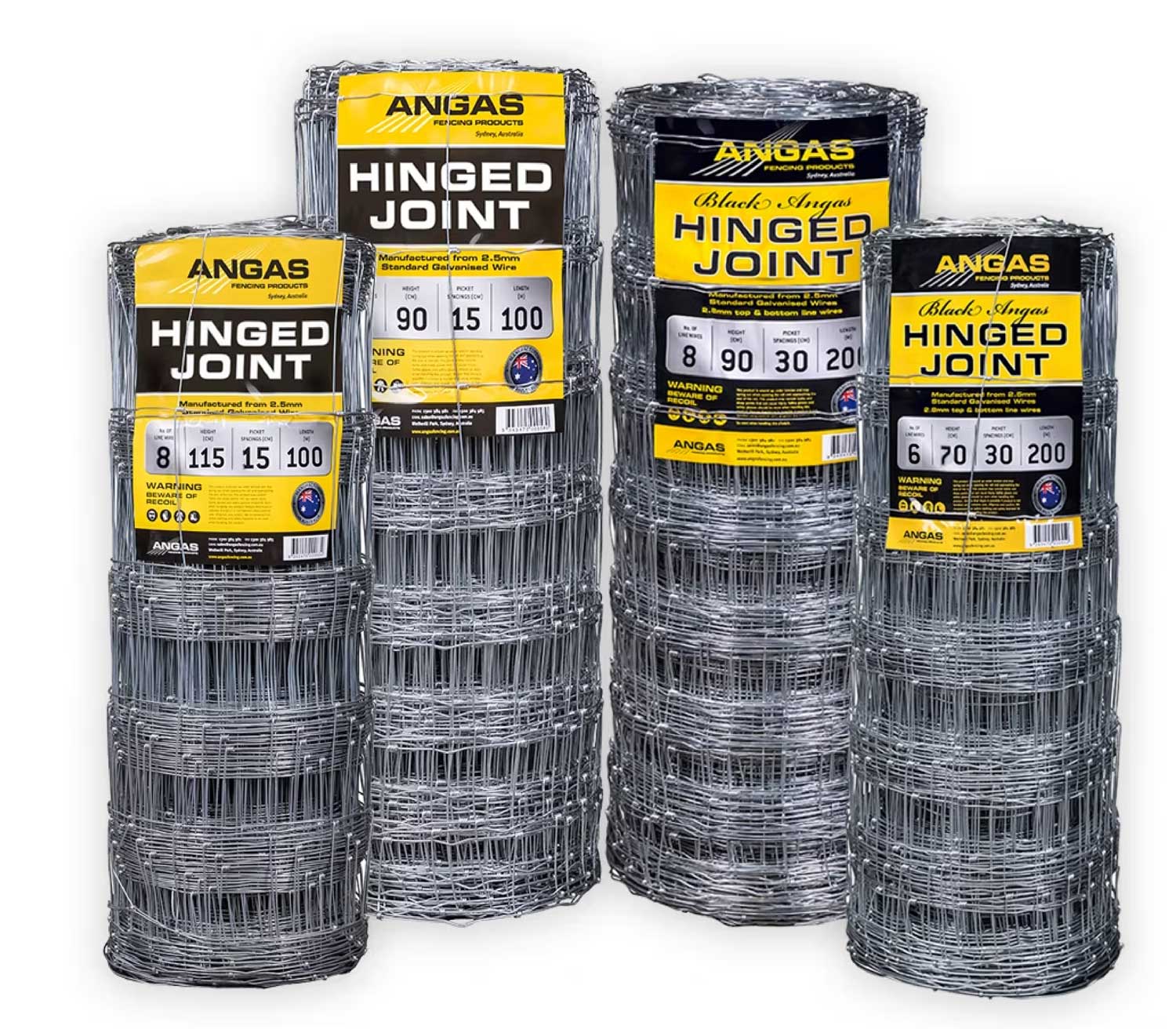

Hinge Joint
related products
Product Overview
Hinge joint fencing designed for rural, livestock and property boundary applications, offering flexible containment across a wide range of pressure requirements. Suitable for internal divisions, general rural fencing and higher-impact areas where strength, stability and consistent mesh performance are required.
Material: Galvanised steel
Range: Available in light, standard and heavy-duty options depending on application requirements
Products List
| Size | Roll Length | Height mm | Wire Diameter mm | Weight Kg | Knot Type |
|---|---|---|---|---|---|
| LITE | |||||
| 6/70/30 | 200 m | 700 | 2.5 | 70 | MaxLoc |
| 8/90/30 | 200 m | 900 | 2.5 | 92 | MaxLoc |
| STANDARD (Rural) | |||||
| 8/90/15 | 100 m | 900 | 2.0 | 41.6 | FarmLite |
| 8/90/15 | 100 m | 900 | 2.0 | 41 | MaxLoc Lite |
| 8/115/15 | 100 m | 1150 | 2.0 | 45.5 | FarmLite |
| 8/115/15 | 100 m | 1150 | 2.0 | 46 | MaxLoc Lite |
| 8/115/15 | 50 m | 1150 | 2.0 | 22 | MaxLoc Lite |
| HEAVY DUTY (Yard / Dog / Horse / Acre) | |||||
| 10/90/5 | 50m | 900 | 2.0 | 44 | MaxLoc Lite |
| 12/120/5 | 100m | 1200 | 2.0 | 56 | MaxLoc |
| 12/120/5 | 50m | 1200 | 2.0 | 28 | MaxLoc Lite |
| 13/115/15 | 100m | 1150 | 2.0 | 64 | MaxLoc Lite |
| 13/122/5 | 80m | 1220 | 2.5 | 74.2 | Feral Bloc |
| 13/122/5 | 100m | 1220 | 2.5 | 186.7 | Feral Bloc |
| 13/122/5 | 50m | 1220 | 2.5 | 96.1 | Feral Bloc |
| 13/122/15 | 80m | 1220 | 2.5 | 58.4 | MaxLoc Lite |
| 13/122/15 | 100m | 1220 | 2.5 | 157 | MaxLoc Lite |
| 13/122/15 | 50m | 1220 | 2.5 | 37.9 | MaxLoc Lite |
| 15/150/15 | 100m | 1500 | 2.5 | 109.3 | Feral Bloc |
DISCLAIMER
Product information, specifications and images are provided as a general guide only and may vary from those shown. Details and availability can change without notice. Please contact Budget Steel to confirm current stock, pricing and product specifications.
