Cattle Rail

Product Overview

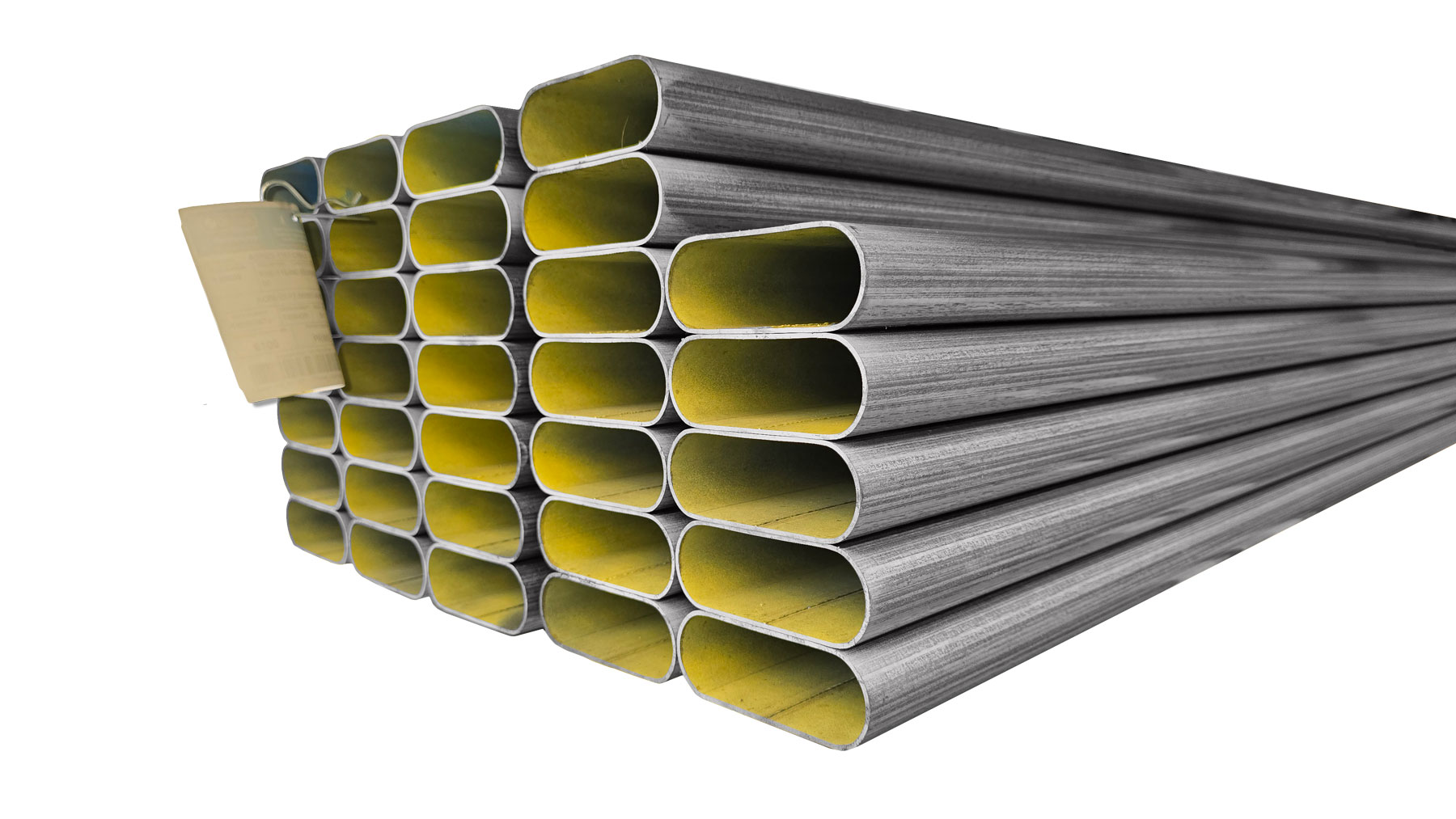

Manufactured from mild steel and compliant with AS/NZS 1163 standards, our steel cattle rail range provides strength, precision and long-term reliability for livestock and structural applications.

Ideal for yards, fencing, enclosures and general fabrication use, offering clean oval and round profiles designed for durability and easy installation.

Note: Non-standard cattle rail sizes and lengths available on request. Minimum order quantities (MOQs) apply.

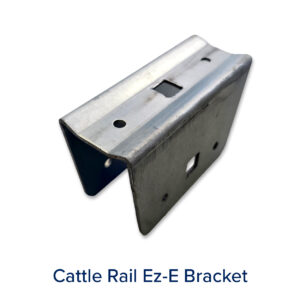

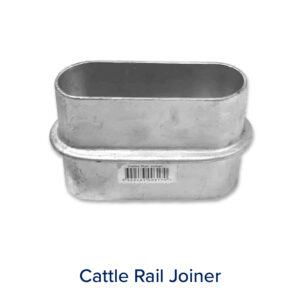

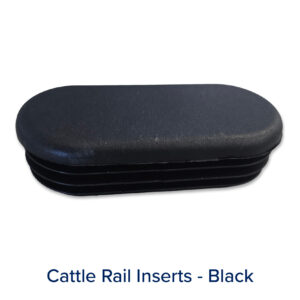

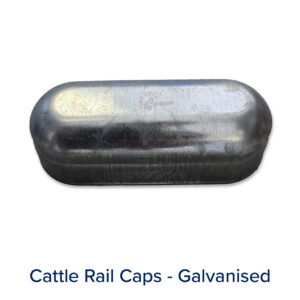

To view our Cattle Rail Accessories click here.

Products List

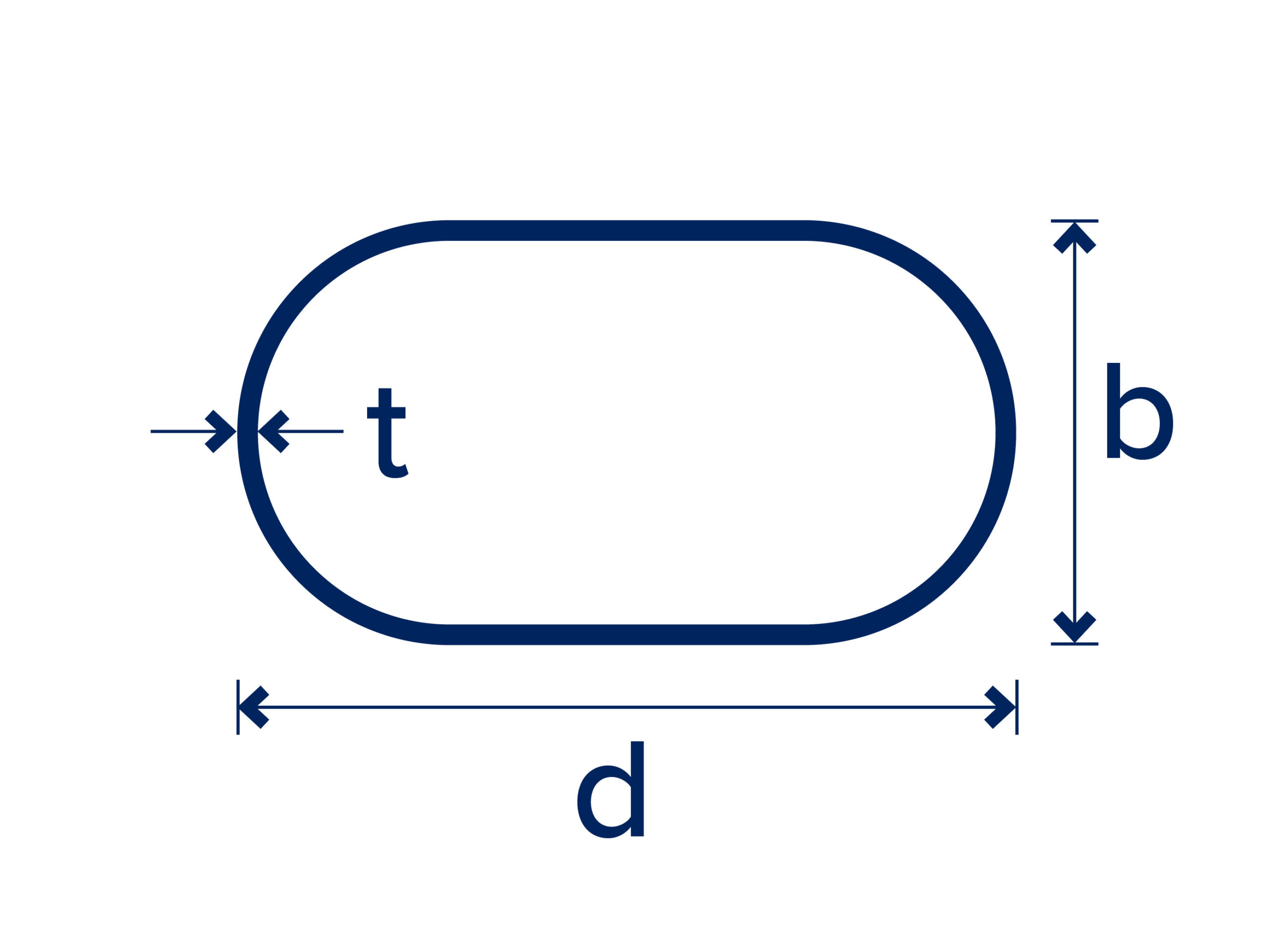

Size dxb (mm)	Wall Thick (mm)	Finished Type		Mass (kg/m)	Pack Qty 6100 mm
Size dxb (mm)	Wall Thick (mm)	Painted	Galv.	Mass (kg/m)	Pack Qty 6100 mm

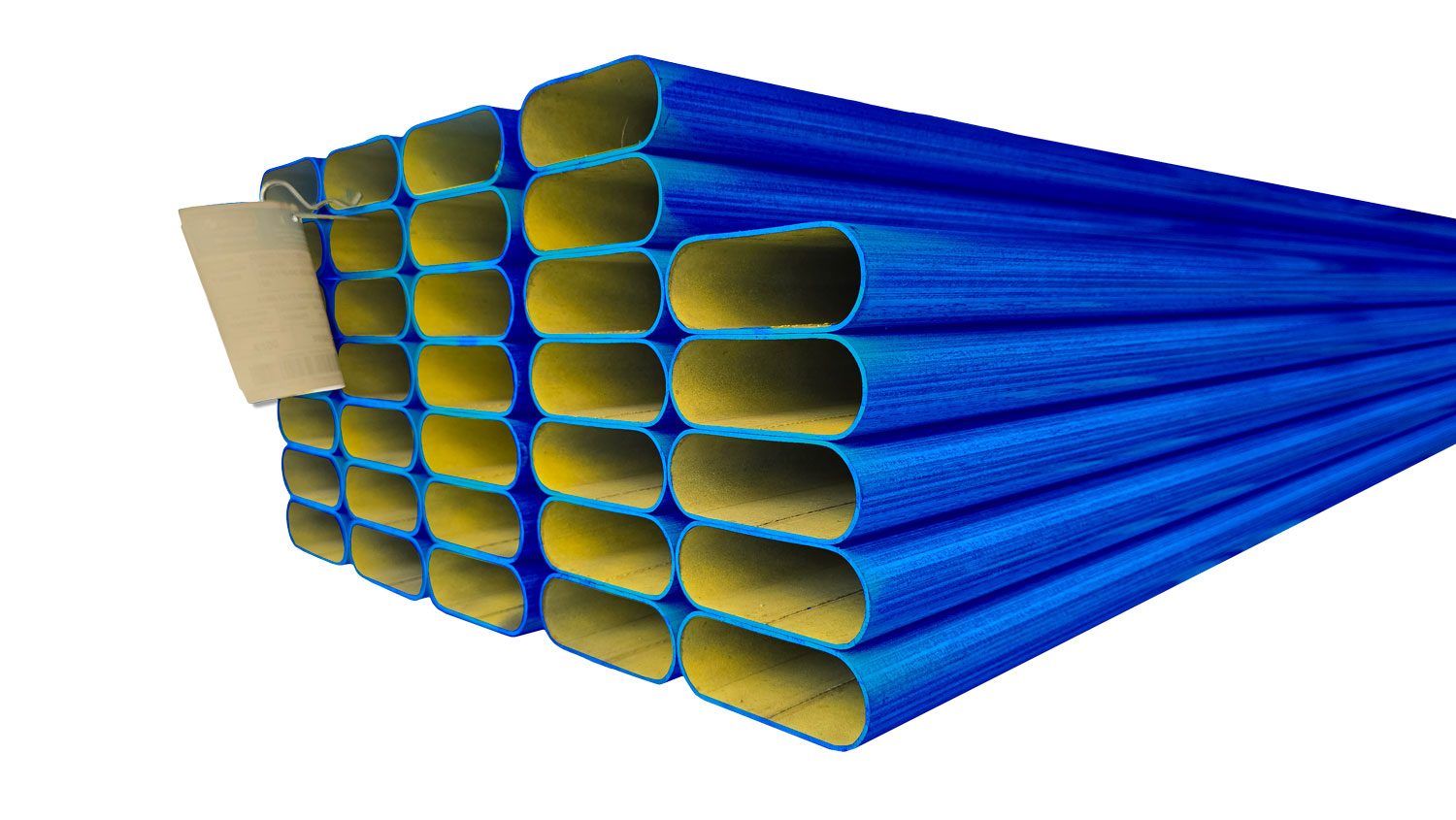

Flat Sided Oval (Rail) 6100mm Lengths Standard
53 x 35	1.6	✓	✓	1.84	48
59 x 30	1.6	✓	✓	1.84	48
75 x 40	1.6	✓	✓	2.46	20
	2.0	✓	✓	2.99	20
97 x 42	2.0	✓	✓	3.65	21
	2.5	✓	✓	4.53	21
115 x 42	1.6	-	✓	3.23	21
	1.8	-	✓	3.95	21
	2.0	✓	✓	4.27	21
	2.5	✓	✓	5.33	21



DISCLAIMER

Product information, specifications and images are provided as a general guide only and may vary from those shown. Details and availability can change without notice. Please contact Budget Steel to confirm current stock, pricing and product specifications.
